Convert any space into two completely private rooms with a shared common area. Each room gets its own lockable swing door for a real-wall feel, while the shared space in front stays open and functional.

Need to create some space without going through an entire renovation? Look no further. This kit is the perfect way to add value to any space, creating entirely new rooms without the hassle of traditional construction.

Each section of the partition is mounted to your existing wall using included Wall Mounting Brackets. This makes for three points of contact and keeps the entire system secure. With just two screws needed per bracket, the entire partition is secured and leaves a minimal effect on your existing walls. When the partition is disassembled or uninstalled, the small screw holes are easily patched and painted as though they were never there.

Say goodbye to drywall, dust, noise, and debris, and assemble the space you need today.

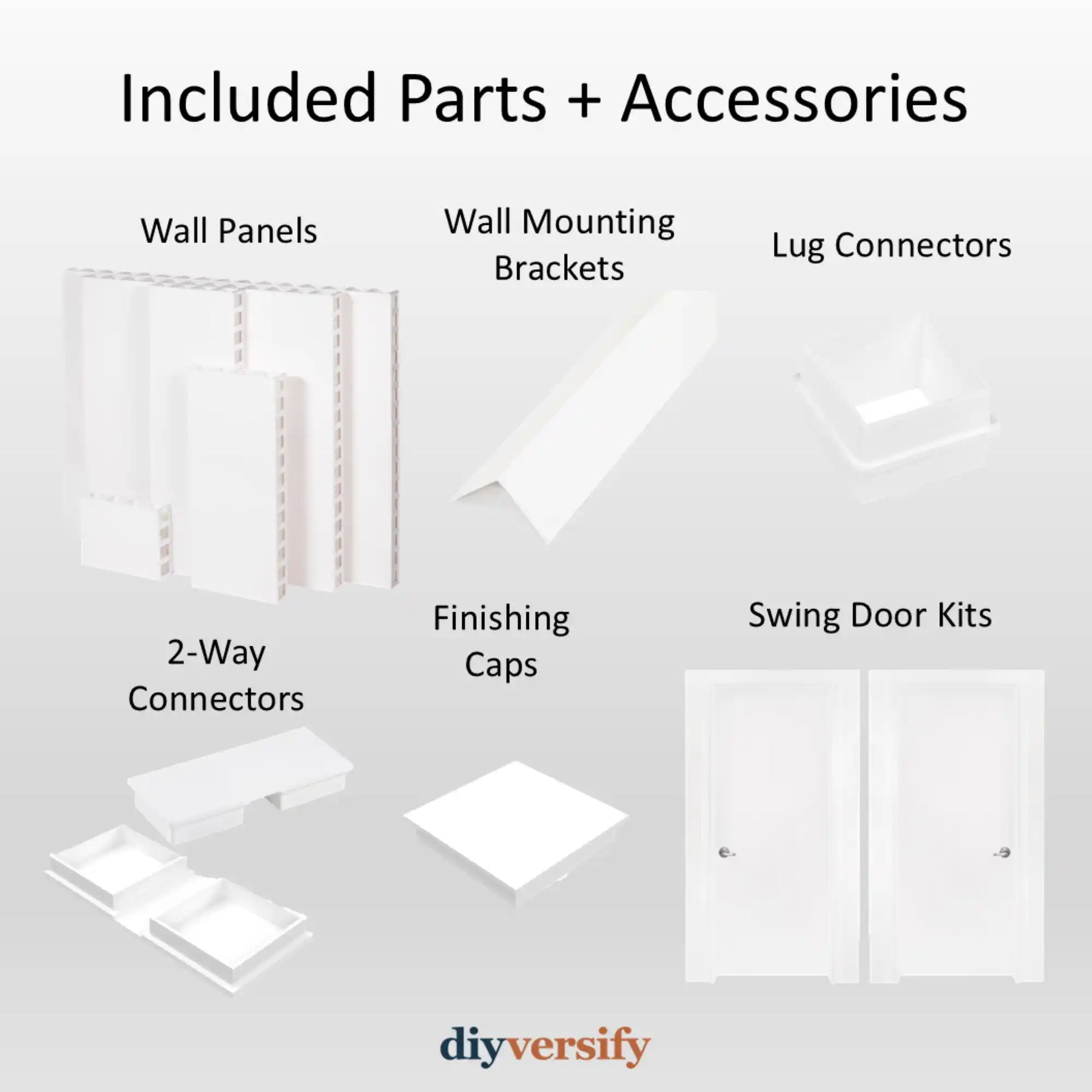

Wall Panels
Your kit includes our signature wall panels that are 3" thick and made of Moisture and Impact Resistant Fiberglass. These panels range from sizes 4'x4'-3'x1' and snap together using included connectors for an ultra-secure two-way connection.

Swing Door Kits (x2)
The included swing door kits provide a premium, real-wall feel with increased privacy compared to our accordion door option, and comes with a standard lock and key.

The doorframes themselves is 36” wide and 80” high, with modular wall panels above the door to match the height of your wall kit. The complete door module measures 48” in width.

By default, the doors are placed on the width of the wall in the most economical position. If you have a special request for the door placement, reach out to us, and we can customize the kit to match your requirements (additional costs may apply).

Wall Mounting Brackets
The Wall Mounting Brackets make it easy to anchor the partition to your existing walls keeping the entire partition safely secured. When removed, the only marks left on your walls are the small holes from the screws, allowing for easy filling and painting.

To mount, screw the bracket to the fixed wall, nest the panel inside the L, and screw the bracket to the panel. Detailed instructions on this can be found in the "Assembly" tab above.

Lug and 2-Way Connectors
Included connectors are easily snapped into the panels, creating an ultra-secure connection between panels from all sides. These connectors allow you to connect panels to each other in seconds, making for easy assembly.

Finishing caps are used to close off any exposed connector holes, giving the exterior of your wall a clean, finished look! Every kit includes enough caps to seal off the exposed perimeter of your wall. Finishing caps for the top are not included. Extra finishing caps can be added from our Accessories page.

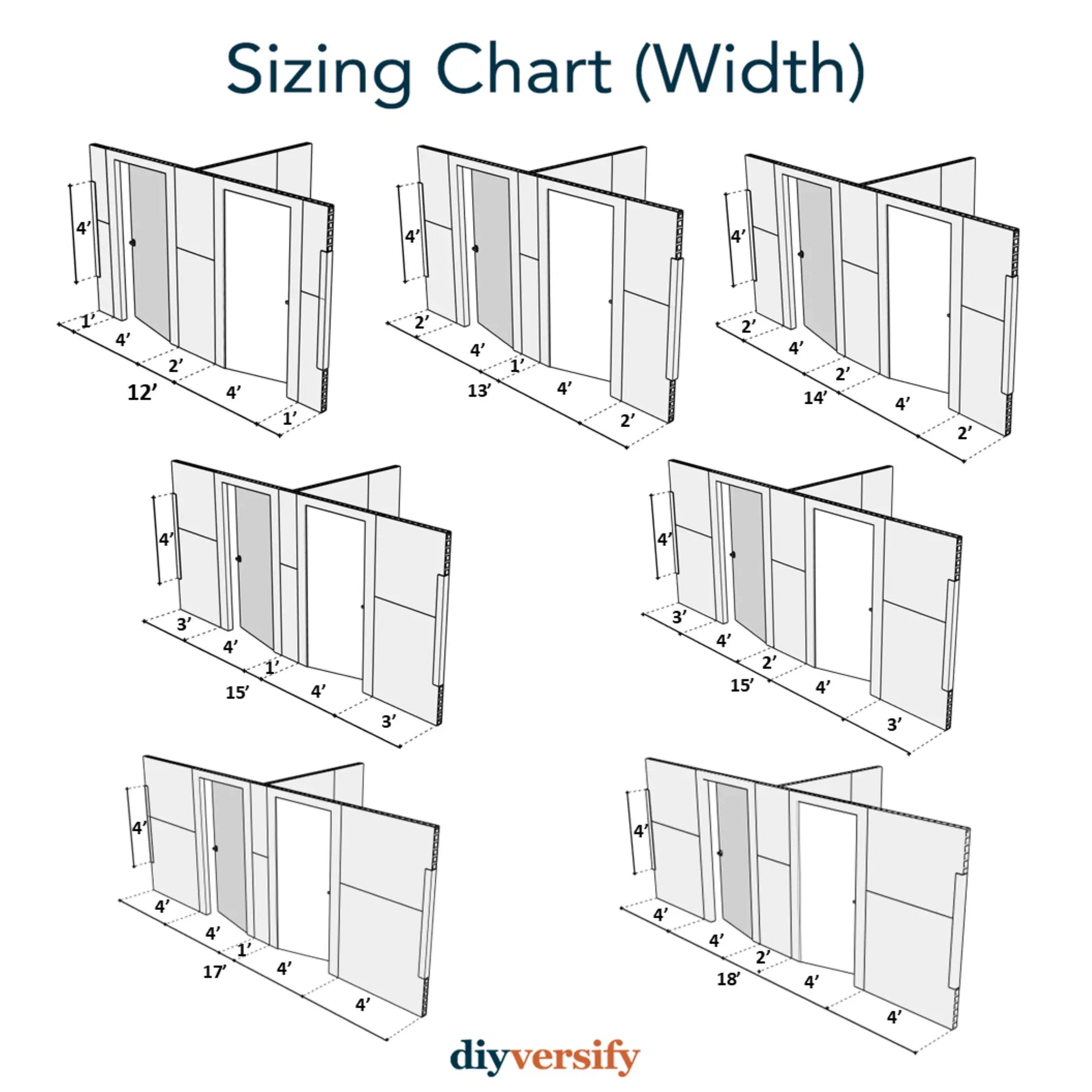

Because this model is attached on both sides to your existing walls, you'll want to measure your space.

1. Ceiling height: Your ceiling should be at least 2 inches higher than the height of the wall you're purchasing.

For example, the minimum ceiling height for the 8' wall to be assembled comfortably is 8'2". Do not try to fit an 8' wall under an 8' ceiling, without a small gap it will be impossible!

2. Wall-to-wall width: The included wall mounting brackets are 3"x3" wide. This gives you around 3" of leeway (1.5" on each side) when it comes to the maximum width of your space from wall-to-wall.

For example, if you're looking at a kit that's 14' wide, the wall-to-wall width of your space should be between 14'-14'3".

3. Floor width: The width of your room along the floor (from the inside of the baseboard on each side) should be no less than the width of the wall you're purchasing.

For example, if you're looking at a kit that is 14' wide, from baseboard-to-baseboard should be no less than 14'.

Do also make sure to check your floor for dips and bulges. Uneven flooring can impact the installation of your product.

Have a question about measurements? Your space doesn't seem to fit any of our available sizes. Contact us, we probably have a custom configuration that works for your space!

Our wall kits are designed to be completely DIY. Two people can typically assemble and install any of our wall kits in 90 minutes or less*, with little to no tools needed.

Note that a drill and/or screwdriver is recommended for installing the accordion doors and mounting the wall kit to your existing walls.

• Video Assembly Guide (link)
• PDF Assembly Guide (link)

If you have any questions regarding assembly feel free to give us a call on (855) 348-4330, email us at hello@diyversify.com or send us a chat right here on our website. We are available Monday-Friday 9AM to 5PM (est).

*Depending on the size of your wall kit
